Product Overview
PROOF designed their AR barrels with the goal of improving performance and reliability in the AR platform. The Caliber Matched Gas System (CAMGAS) results in a gas system that is tuned specifically for the cartridge and length of the barrel.
By moving the port location; PROOF ensures that the gas system pressure is the same as what the AR platforms were originally designed around. The result is a recoil impulse that is noticeably softer; less fouling in the receiver; increased reliability of extraction; and less wear and tear on brass. This helps keep you on target and shooting while taking advantage of the latest high performance cartridges.
* Barrels are guaranteed for headspacing to the specifications of the JP Enterprise Enhanced Bolt.
* It is recommended to double check and ensure proper headspace before firing your rifle.
* We recommend the use of full mass components throughout (full mass bolt; buffer; and springs).
* All barrels with Intermediate; Rifle +1; Rifle +2; and Rifle +3 gas systems include the proper gas tube.
* 6.5 Grendel; 22 ARC; and 6 ARC barrels are designed for operation using a Grendel Type II bolt.
Carbon Fiber Features:
Lightweight: Up to 64% lighter than traditional steel barrels of similar contour.
Extreme Temperature Resistance: Improved heat dissipation for cooler and longer lasting barrels.
Unprecedented durability: Wrapped with high-strength; aerospace-grade carbon fiber impregnated with a proprietary matrix resin.
Traditional Steel:
Long-Lasting: Excellent erosion wear characteristics and corrosion resistance.
Extreme Pressure Resistance: An optimum combination of high tensile strength along with requisite toughness to withstand extreme chamber pressures encountered during firing.

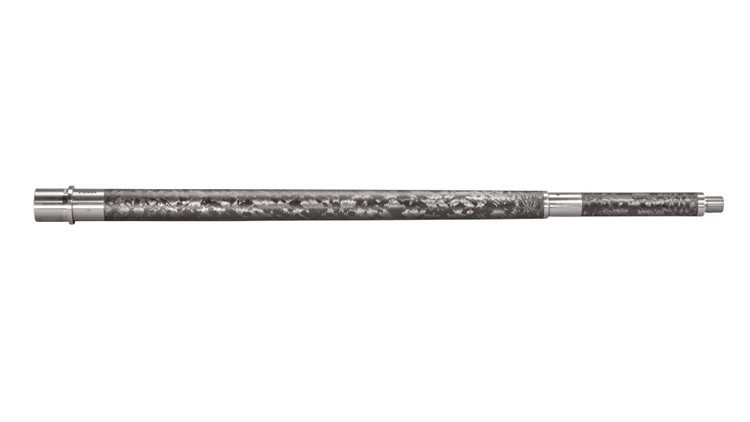

18" CF 22 ARC:
Length:18"
Twist: 1:7
Gas Length: Rifle+1
Gas Journal: .750
Port Size: .099
Muzzle Thread: 5/8-24
Weight: 1lbs-15oz
18" SS 22 ARC:
Length:18"
Twist: 1:7
Gas Length: Rifle+1
Gas Journal: .750
Port Size: .099
Muzzle Thread: 5/8-24
Weight: 2lbs-14oz
