Product Overview

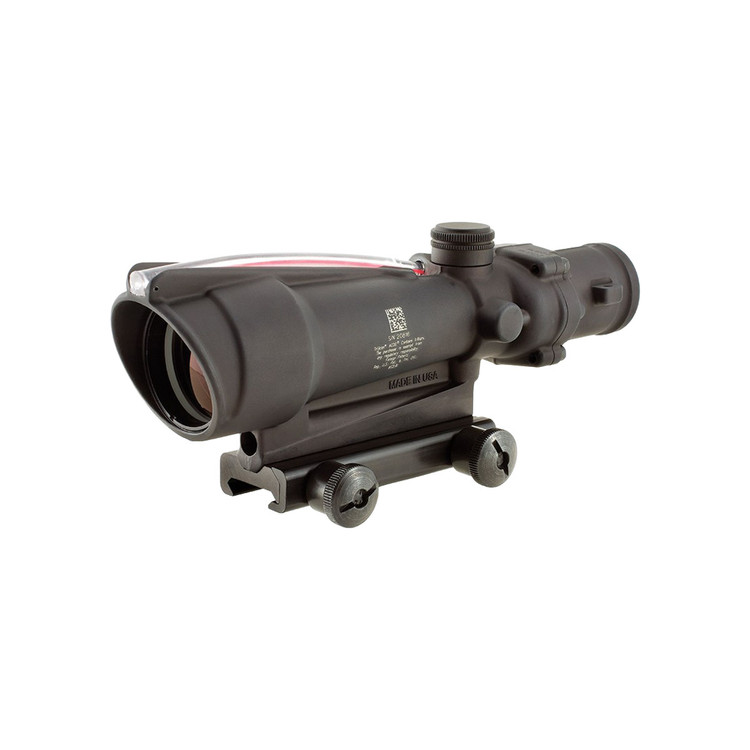

There’s a reason the Trijicon ACOG® (Advanced Combat Optical Gunsight) is the official medium-distance engagement optic of the Marine Corps and U.S. Special Operations Forces—and why more than one million ACOGs have been produced. Every feature of its innovative design serves a single purpose: increased hit potential in all lighting conditions through brilliant reticle illumination, compact design and legendary durability.
The new MRAD reticles build on that proven platform by providing a flexible aiming solution that is not tied to a single cartridge or predetermined trajectory. Consistent MRAD subtensions allow users to establish precise elevation and wind holds for their specific firearm and ammunition combination. This flexibility is especially valuable when transitioning between different ballistic profiles, including supersonic and subsonic ammunition.
The same MRAD aiming methodology can be applied across intermediate-caliber carbines, suppressed platforms and other weapon systems.
FEATURES
- Tritium/fiber optic illuminated reticle that automatically adjusts the brightness based on available light
- Fixed-power design allows for minimal moving parts to create a nearly indestructible sighting system
- “Both eyes open” shooting using Trijicon's Bindon Aiming Concept (BAC) feature allows for improved situational awareness
- The quality of the glass and multi-coated lenses maximize light-gathering capabilities and clear field of view with zero distortion
- Bullet drop compensating and target-ranging reticle for decisive aiming
- Proven to withstand recoil from a .22LR to a .50BMG and everything in between. Easily passes U.S. Military drop test requirements.
- Exceptional waterproof performance that exceeds military standards. Dry nitrogen-filled to eliminate fogging.
SPECS
| Length x Width x Height | 8 in x 2.1 in x 2.9 in (203.2mm x 53.34mm x 73.66mm) |
| Magnification | 3.5x |
| Caliber | MRAD |
| Illumination Source | Fiber Optics & Tritium |
| Eye Relief | 2.39 in. (60.71mm) |
| Field of View (degrees) | 5.5 |
| Mount | Flattop Thumbscrew Mount (TA51) |
| Finish | Matte Black |
| Weight | 17.6 oz. (498.95g) |
| Objective Size | 35mm |
| Bullet Drop Compensation (BDC) | Yes |
| Bindon Aiming Concept (BAC) | Yes |
| Power Source | Fiber Optics & Tritium |
| Exit Pupil | 0.39 in. (9.91mm) |
| Field of View | 28.9 ft. @ 100 yds. (9.63m @ 100m) |
| Housing | Forged Aluminum |
| Submersion Depth | 66ft (20m) |
INCLUDES
Thumbscrew Flattop Adapter (TA51)
3.5x35 Scopecoat (TA63)
LENSPEN (TA56)
Lanyard Assembly for Adjuster Caps (TA71E)
Trijicon Logo Sticker (PR15)
ACOG Manual
Warranty Card
