Product Overview

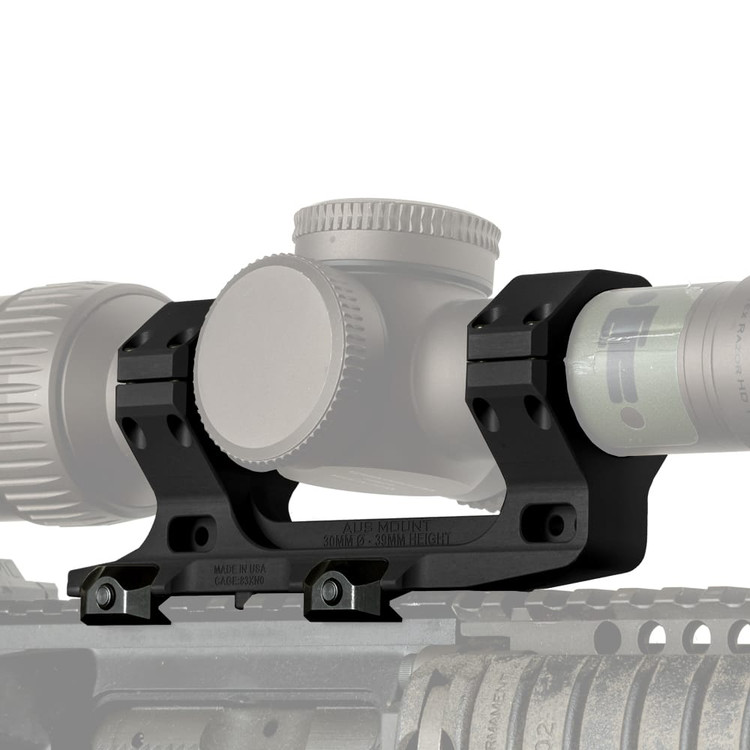

Introducing the 1.70 inch bore height AUS Mount for 30 mm and 34mm diameter magnified optics; from Reptilia. Driven by the request of an end user group; the AUS Mount is the culmination of a 2 year development program. Like our DOT Mount line the AUS Mount attaches to any M1913 Picatinny rail via our anti-snag spring-loaded nitrided steel clamp and custom bolt mounting system which can be tightened with a T-25 Torx or a flat blade driver to sit flush with the body of the mount for a low-profile; streamline design. Also like our DOT Mount line; the AUS mount is machined from a single piece of billet 7075-T6 aluminum and is finished with MIL-STD Type III; Class 2; hard anodize coating.
Introducing the AUS Mount for 35mm diameter magnified optics; from Reptilia. Driven by the request of an end user group; the AUS Mounts are the culmination of a 2 year development program. Like our DOT Mount line the AUS Mount attaches to any M1913 Picatinny rail via our anti-snag spring-loaded nitrided steel clamp and custom bolt mounting system which can be tightened with either a 5/32 hex or a flat blade driver to sit flush with the body of the mount for a low-profile; streamline design. Also like our DOT Mount line; the AUS mount is machined from a single piece of billet 7075-T6 aluminum and is finished with MIL-STD Type III; Class 2; hard anodize coating.
Like all Reptilia products; the AUS Mount is 100% made in the USA and carries a full lifetime warranty against manufacturer defects. Additional heights and optic configurations coming soon!
Machined from billet 7075-T6 aluminum
MIL-STD; Type III; hardcoat anodized
165 grams
34mm diameter bore
43.2mm (1.70 inch) bore height
Up to 86mm objective will clear flat-top Picatinny
Introducing the AUS Mount for 35mm diameter magnified optics; from Reptilia. Driven by the request of an end user group; the AUS Mounts are the culmination of a 2 year development program. Like our DOT Mount line the AUS Mount attaches to any M1913 Picatinny rail via our anti-snag spring-loaded nitrided steel clamp and custom bolt mounting system which can be tightened with either a 5/32 hex or a flat blade driver to sit flush with the body of the mount for a low-profile; streamline design. Also like our DOT Mount line; the AUS mount is machined from a single piece of billet 7075-T6 aluminum and is finished with MIL-STD Type III; Class 2; hard anodize coating.
Like all Reptilia products; the AUS Mount is 100% made in the USA and carries a full lifetime warranty against manufacturer defects. Additional heights and optic configurations coming soon!
Machined from billet 7075-T6 aluminum
MIL-STD; Type III; hardcoat anodized
165 grams
34mm diameter bore
43.2mm (1.70 inch) bore height
Up to 86mm objective will clear flat-top Picatinny
