Product Overview

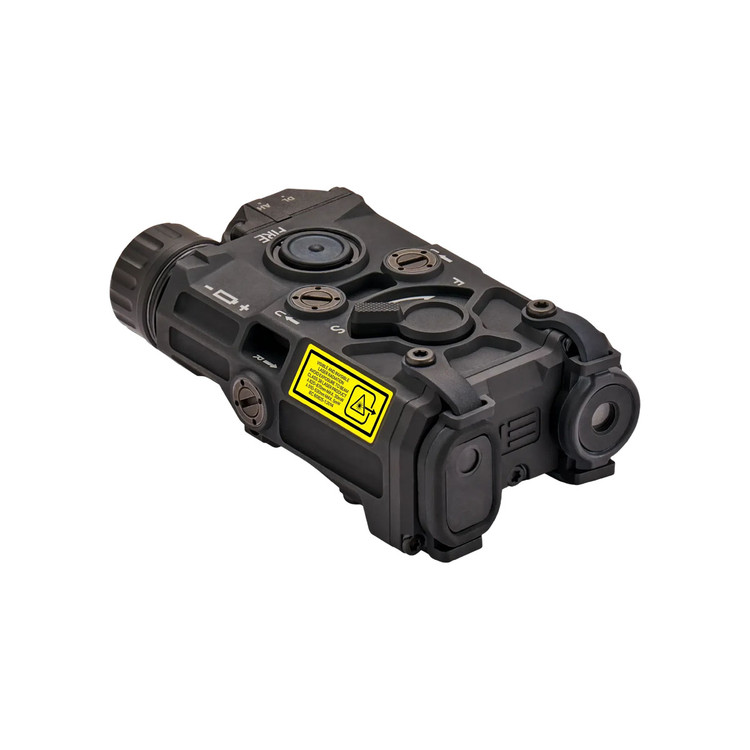

The On-Gun Laser Commercial Power (OGL C) is an eye-safe; consumer-ready version of the OGL Standard; originally developed for military and law enforcement. It retains a rugged aluminum housing with intuitive controls; including a mode selector; windage and elevation adjustments focus slide; and protective covers. Co-aligned green visible and IR aiming lasers support daylight; low-light; and night-vision use; while a dedicated IR illuminator delivers fast spot-to-flood adjustment for enhanced situational awareness. Designed for top-rail mounting and adaptable to either side of the handguard; the OGL C avoids interference with front iron sights.
Included in the Box:
- Commercial model is eye-safe and available to the general public
- Single CR123 lithium battery offers up to 9 hours of run time
- All-aluminum housing provides extreme durability
- Compact design; similar in size to a deck of playing cards
- IR illuminator utilizes a high performing VCSEL diode for a crisp; clean beam
- IR and visible aim lasers are optically paired for easy zeroing
- Unique sliding lever controls IR illuminator beam divergence; allowing for easy adjustment even in the dark
- Crane-type laser port with Modlite 7” switch included
- Tethered protective caps and pattern generators
Technical Specs
| Output Power High | Beam Divergence | Wavelength | |
| VISIBLE AIM LASER | ≤ 0.5 mW (Class 3R) | < 0.5 MRAD | 515 nm (+15/-5 nm) |
| NIR AIM LASER | ≤ 0.67 mW (Class 3R) | < 0.5 MRAD | 830 nm (±10 nm) |
| NIR ILLUMINATOR | ≤ 30 mW (Class 3R) | Spot ≥ 30 MRAD; Flood ≥ 105 MRAD | 850 nm (±10 nm) |
Included in the Box:
- OGL C
- Zippered Soft Case
- Multitool
- Pattern Generators
- Remote Switch
- CR123 Battery
