Product Overview

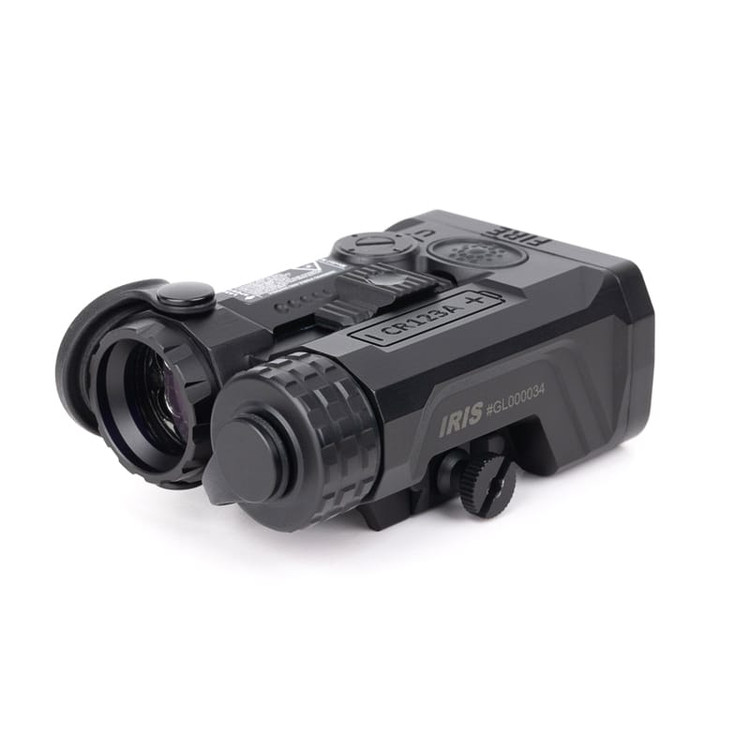

Constructed from redesigned 7075-T6 aluminum; the Holosun IRIS-RD3 is 43% lighter and 20% lower in profile than the LS321 series; providing enhanced ergonomics while maintaining exceptional durability and operational reliability.
This advanced system integrates co-aligned visible red and infrared (IR) aiming lasers; allowing precise zeroing during daylight using the visible laser; with seamless transition to IR functionality for night operations. A high-output 60mW VCSEL IR illuminator delivers outstanding performance in low-light and no-light environments when used in conjunction with night vision devices. A top-mounted beam adjustment slider enables fast; glove-friendly tuning of the IR illuminator’s beam from wide to narrow for optimal performance across varying engagement distances.
Additional features include a centrally positioned fire button for ambidextrous activation; dual rear-facing selectors for intuitive power and mode control; and a low-profile two-button remote switch with Crane plug and VIS override. The IRIS-RD3 offers dependable performance and advanced functionality in a rugged; precision-built compact platform.
This advanced system integrates co-aligned visible red and infrared (IR) aiming lasers; allowing precise zeroing during daylight using the visible laser; with seamless transition to IR functionality for night operations. A high-output 60mW VCSEL IR illuminator delivers outstanding performance in low-light and no-light environments when used in conjunction with night vision devices. A top-mounted beam adjustment slider enables fast; glove-friendly tuning of the IR illuminator’s beam from wide to narrow for optimal performance across varying engagement distances.
Additional features include a centrally positioned fire button for ambidextrous activation; dual rear-facing selectors for intuitive power and mode control; and a low-profile two-button remote switch with Crane plug and VIS override. The IRIS-RD3 offers dependable performance and advanced functionality in a rugged; precision-built compact platform.
Specs
| ELECTRONIC | |
| Power Source | Battery |
| Battery Type | CR123A |
| PHYSICAL | |
| Window Size (in) | 0.58X0.77 |
| Dimension (in) | 3.2x1.97x1.34 |
| Weight (oz) | 6.4 |
| MECHANICAL | |
| Housing Material | 7075 T6 Aluminum |
| Surface Finish | Hard Anodize |
| Adjustment per Click | 0.5MOA |
| W&E Travel Range | ±50 MOA |
| ENVIRONMENT | |
| Storage Temperature | -40°F to -94°F |
| Working Temperature | -22°F to -76°F |
| Submersion | IPX8 |
| Vibration | 1000G |
| ILLUMINATOR | |
| Laser & Illuminator Type | Dual Laser & IR Illuminator |
| IR Illuminator Class | Class 1 |
| IR Illuminator Output | VCSEL 60mW |
| IR Pointer Class | Class 1 |
| IR Pointer Output | <0.7mW |
| Visible Laser Class | 3R |
| Visible Laser Output | <5mW |
