Product Overview
IRREGULAR DESIGN GROUP

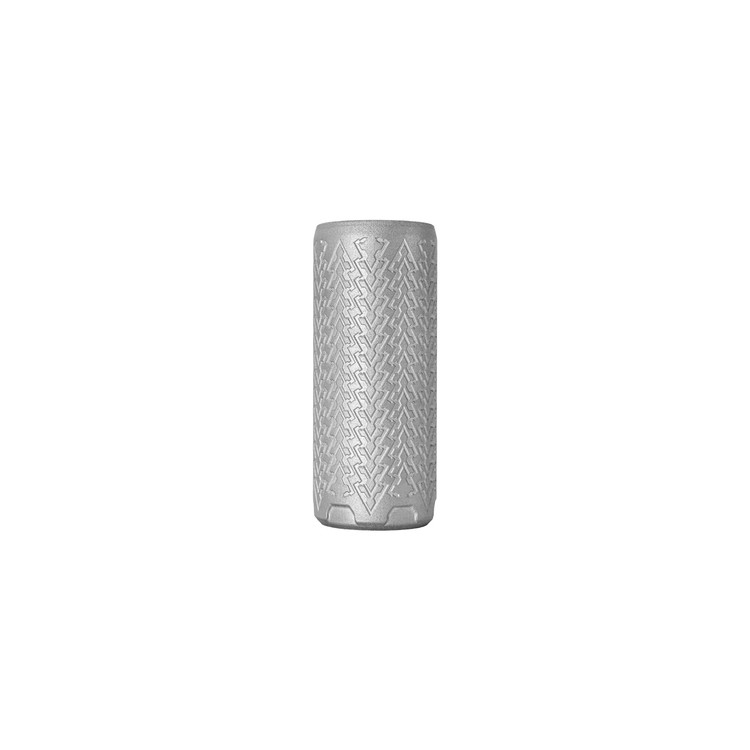

HESYCHIA 556UK-HUB
The 556UK-H is the HUB version of the Hesychia 556UK. It keeps the same core design logic in a cross-compatible format for shooters who need a 1.375-24 TPI HUB interface instead of the native Hesion Bow lock.
Because the 556UK-H is a HUB suppressor; the muzzle device used inside the suppressor has a drastic effect on overall performance. Muzzle brake or compensator-type devices typically offer better suppressed performance; while open tine or caged flash hiders tend to have a slightly negative effect on suppressor performance and can degrade the internal structure faster over time. That is because a brake takes a large portion of the uncorking pressure and diverts it into the blast chamber walls rather than allowing the first pressure event to impact the face of the blast baffle directly.
The 556UK-H uses the same gas-management philosophy as the native 556UK; applied to a HUB envelope. It is still a low back pressure suppressor with strong tone and flash control for its size; but some of the packaging efficiency of the native system is traded for HUB compatibility and muzzle device flexibility.
Back pressure is controlled at the beginning. The muzzle device; blast chamber; early intake geometry; and first redirections matter more than most suppressor marketing will ever admit. That is where the real leverage is.
Gas enters a radial diamond structure in the initial chamber; gets disrupted and cooled; then gets pulled into annular pathways early; before the first blast baffle has a chance to become a pressure traffic jam. The goal is not simply to trap more gas. The goal is to move pressure off the muzzle immediately and distribute it across the entire suppressor; so the gun cycles more like itself.
Inconel 718 is the material choice because it holds its shape; resists erosion; and survives thermal cycling in a way that fits what this suppressor is built to do. It is not the lightest or the cheapest option. However; it IS the one that makes the suppressor’s geometry viable under real rifle heat and use cycles.
FEATURES
- HUB 1.375-24 TPI interface
- 18" overall length
- 8" between blast baffle and front face
- 11oz Inconel 718 construction
- No tuning required
SPECS
| CALIBER | 5.56MM NATO |
| WEIGHT | 11oz |
| OVERALL LENGTH | 4.18” |
| LENGTH ADDED TO MUZZLE DEVICE | Mount dependent |
| DIAMETER | 1.75” |
| DB AT EAR | 136dB – MD dependent |
| DB AT MUZZLE | 140dB – MD dependent |
| TEST PLATFORM | DD MK18 10.3 |
| MATERIAL | Inconel 718 |
| MANUFACTURING | Laser Powder Bed Fusion (LPBF) |
| GAS PROFILE | Low Backpressure |
| MOUNT | HUB 1.375-24 TPI |
| FULL AUTO RATED | Yes |
| CHAMBER DEPTH | 1.34” |
| COMPATIBLE MUZZLE DEVICES | HFH; Micro FE |
| BARREL RESTRICTIONS | Full auto rated for barrels ≥10.3” |
