Product Overview
MODLITE LIGHT HEADS (OKW V2; PLHV2; IR-850; IR-940)
All heads can be powered by the 18350; 18650 or x2 CR123. (A single CR123 will not power any Modlite head).
Runtime with 18650: High Mode 75 minutes; Admin Mode (15% output) 10.6 hours
Runtime with 18350: High Mode 35 minutes; Admin Mode (15% output) 3.6 hours
Modlite PLHV2
- Single Output OR Multi-Mode
- Single Mode Features a single high-only mode with full output
- Multi-Mode features 2 selectable modes High Mode/ High Mode + Admin Mode
- 1350 lumens
- 54,000 candela
- Cool White 5700K emitter tint
- Drivers are fully potted and tested to withstand select fire SCAR 17 recoil.
Weight: 2.1oz
Width/Diameter: 1 ¼”
Length: 1 ¾”
Modlite OKW V2
- Single Output OR Multi-Mode
- Single Mode Features a single high-only mode with full output
- Multi-Mode features 2 selectable modes High Mode/ High Mode + Admin Mode
- 1,300 lumens
- 95,000 candela
- Drivers are fully potted and tested
Weight: 2.1oz
Width/Diameter: 1 ¼”
Length: 1 ¾”

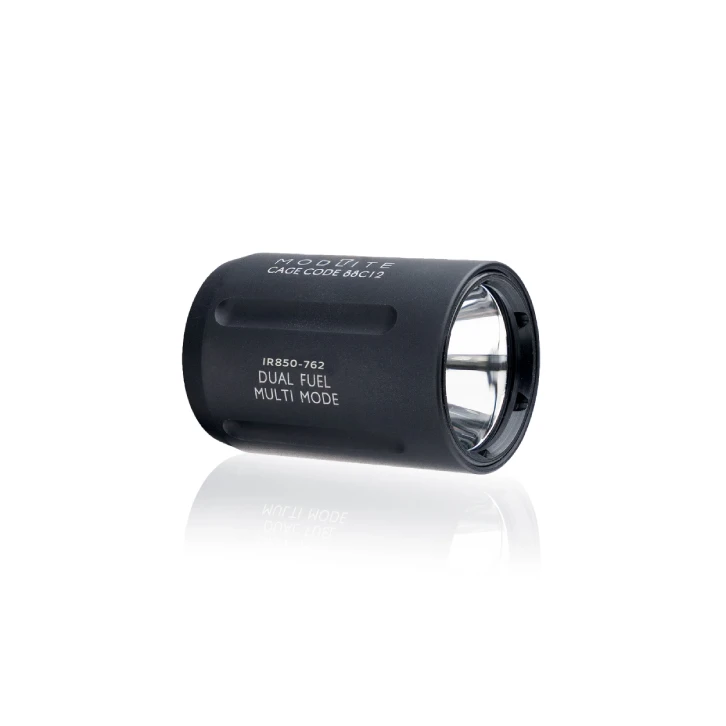

Modlite Multi-Mode IR-850 (THROW)
This dedicated IR illumination head outputs IR light in the 850nm IR spectrum; illuminating targets out to 300 yards or further depending on atmospheric conditions. The reflector is designed to deliver a good amount of spill and a well-defined hot spot. This is Modlite’s highest-performance IR head and best suits those looking for the most throw.
Unlike the white light heads which utilize a multi-mode prioritizing high output; IR Multi-Mode operates with an "Admin/High" prioritization; making for more accessible handheld and helmet-worn admin lighting. If Admin mode is not desired; this can be locked out and the light can be run in a "High only" state for weapon-mounted applications.
- Multi-mode (Admin/High)
- Drivers are fully potted and tested to withstand select-fire SCAR 17 recoil
Weight: 2.1oz
Width/Diameter: 1 ¼”
Length: 1 ¾”
Modlite Multi-Mode IR-940 Light Head (FLOOD)
This is a dedicated IR illumination head that is designed to output IR light in the 940nm IR spectrum. The reflector is designed to deliver a good amount of spill and a well-defined hot spot at distances of up to 75 yards depending on atmospheric conditions. If you are looking for the most flood IR head currently available; this is the light head you want.
- Multi-mode
- Drivers are fully potted and tested to withstand select-fire SCAR 17 recoil
Weight: 2.1oz
Width/Diameter: 1 ¼”
Length: 1 ¾”
