Product Overview

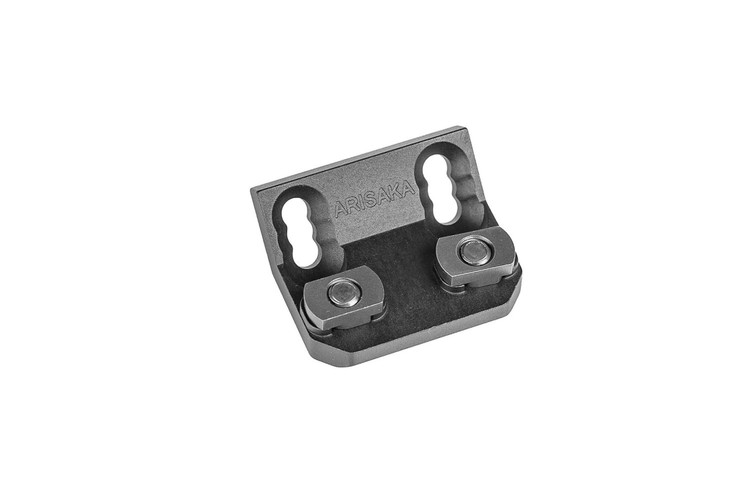

The Patented Arisaka Offset Scout Mount is designed specifically for the Surefire Scout Light M600 and M300 series weapon lights; the Modlite PLH and OKW weapon lights; the Arisaka 300; 600 and 18650 Series Lights; the Streamlight Protac Rail Mount 1; 2 and HL-X (non-laser); and Olight Odin. It replaces the stock Picatinny rail adapter with a low profile mount for M-Lok handguards. The Offset Scout Mount is very low profile at less than 0.20" thick.
When used on the side mounting surfaces of M-Lok handguards; the Offset Scout Mount places the light at a 45 degree angle and tucks it in closer to the rail system. Oriented upwards; the light is located at approximately the 1:30 or 10:30 clock positions. Oriented downwards; the light is located at approximately the 4:30 or 6:30 clock positions.
The Offset Scout Mount also provides three lateral mounting positions for the light body; which allows the user to position the light closer or farther away from the top rail; front sights; or other accessories. Three positions are provided; spanning approximately 0.240". When used with the Arisaka 300 Series Light Body or 600 Series Light Body; even more clearance can be gained for larger front sights.
The Offset Scout Mount is compatible with most M-Lok handguards like the BCM MCMR; KAC URX4; and Geissele SMR MK8/14/16. It will not fit the handguard profile of the Aero Precision Enhanced Gen 2; SIG MPX; or MCX Virtus (unless using the MCX suppressor width handguard). Aero Precision R-One and S-One owners should use the Offset Scout Mount Galil/MPX. Aero Precision Enhanced Gen 2 owners should use the Offset Scout Mount Spear.
Compatible with the Modlite PLH; PLHv2 and OKW; Surefire M300A; M300B; M300C; M300V; M312; M322; M312V; M313V; M322V; M600B; M600C; M600P; M600U; M600V; M600DF; M612; M622; M603V; M612V; M622V; Streamlight Protac Rail Mount 1; 2 and HL-X (non-laser); Olight Odin; CD REIN; and Arisaka 300; 600 and 18650 Series. M620; M951/2 and M961/2 series lights can also be used with the Offset Scout Mount with the addition of the Arisaka Offset M620 Adapter.
Length: 1.265"
Weight: 0.4 oz
Distance from center of M-Lok screw hole to 45 degree angle is 0.405".
The mount is CNC machined from 6061-T651 aluminum and MIL-A-8625 Type III hard coat anodized. Includes necessary screws to attach light body to mount. Requires a T20 Torx or IP20 TorxPlus driver for installation (not included). A T9 Torx driver is required to remove the stock Picatinny mount from Surefire Scout Lights. Recommended torque: 30 inch lbs for M-Lok screws and 20 inch lbs for light body screws with Loctite 222 or 243.
Hardware: Two M-Lok nuts; two 10-24x5/16" Torx button head screws; two 8-32x3/8" Torx flat head screws.
