Product Overview

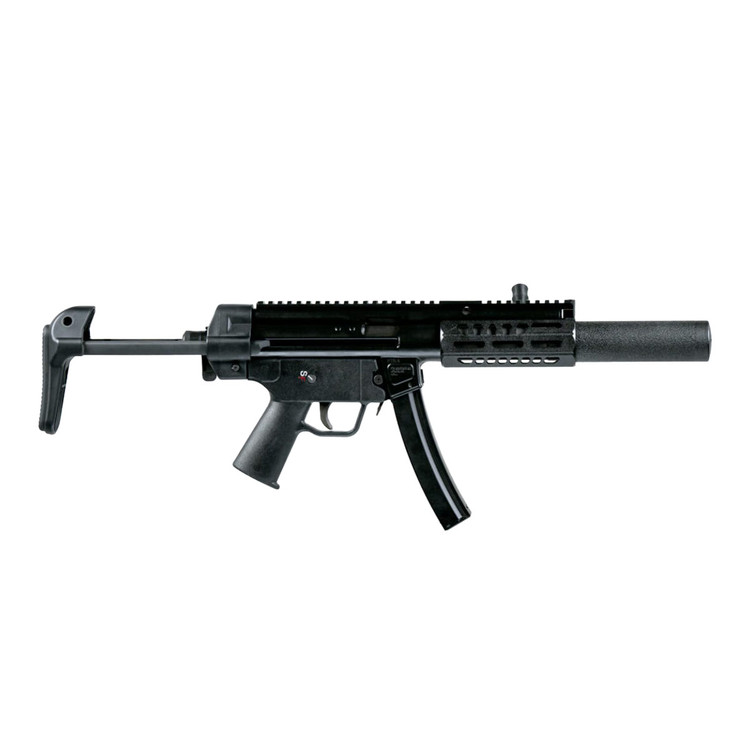

PTR 9SDM-B 9X19MM
SBR WITH CS1 COLLAPSIBLE STOCK
The PTR 9SDM-B is a factory-configured; semi-automatic 9×19mm short-barreled rifle that integrates a collapsible stock and suppressor into a single; cohesive system. Sold as an SBR with the PTR CS1 collapsible stock and the new Vent SDM suppressor installed; it delivers a compact MP5-pattern platform optimized for suppressed operation from the start.
The specially-engineered slots in the barrel’s rifling grooves port off gas; reducing supersonic bullet velocity to subsonic. This design also prevents bullet-jacket damage; minimizes fouling; and allows far easier cleaning than traditional SD firearms. The ported gas flows into the 9SDM’s pre-suppressor; which PTR calls the USDA (Universal SD Adapter). The USDA is designed to capture and slow high-pressure ported gas before it enters the suppressor. For increased modularity; the USDA is threaded to accept both HUB Alpha and HUB Bravo suppressor thread patterns.
The 9SDM-B includes the new purpose-built PTR VENT SDM suppressor (threaded HUB-B 1.375-24). The VENT SDM suppressor was designed specifically for ultimate sound suppression when paired with the 9SDM. The VENT SDM is manufactured using 3D-printed titanium; utilizing innovative Purposely Induced Porosity (PIP) technology; and protected by a DLC coating. The VENT SDM excels at reducing sound signature and back pressure while preserving the balance and smooth recoil of the 9SDM.
The platform also features a full-length Picatinny rail; Removable M-Lok® forend; metal MagPul® backup sights; and an extended charging handle (threaded to accept most Remington 700 pattern bolt knobs). The 9SDM represents the next evolution of the SD platform; engineered for shooters who demand the highest level of performance without compromise.
SPECS
| CALIBER | 9 x 19mm |
| ACTION | Semi-automatic (Host ready for NFA-registered; auto sear pack) |
| CARRIER | Nitride heat treated; tungsten dead-blow weighted; full-auto bolt carrier |
| COLOR | Black |
| FINISH | Powder coated over Parkerizing |
| BARREL | 6" Nitride heat treated; 3-lug and threaded 1/2" x 28; twist 1 in 10" RH |
| BARREL OAL | 5.74" |
| OPTIC MOUNT | 13.2" Steel picatinny rail |
| HANDGUARD | Mil-spec anodized aluminum M-LOK® – Three rows of three M-LOK® compatible attachment points to mount accessories |
| LENGTH | Stock Extended; 28.75" Stock Collapsed 22.75" |
| MAGAZINE | 30-Round; Steel |
| TRIGGER PULL | 9-10lb |
| STOCK | PTR CS1 |
| WEIGHT (DRY) | 7.12lb |
| CASE | Heavy duty range case with contoured foam insert |
| TRIGGER HOUSING INDICATOR | 2-Position |
| INCLUDES | MagPul® MBUS Pro® Steel Front and Rear Sight; 2 Magazines; trigger cable lock |
