Product Overview

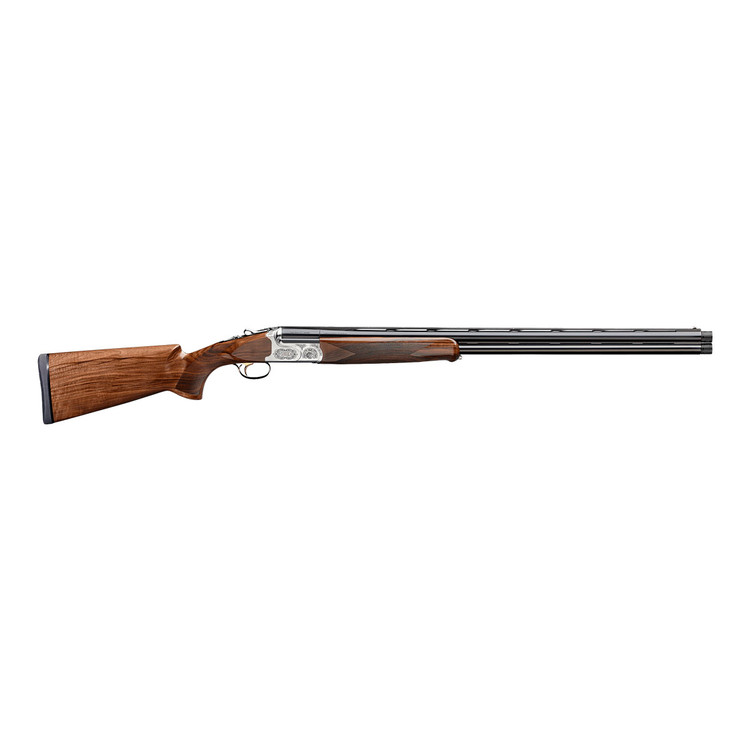

The Summit Limited has the same weight; feel; and clay crushing performance of the standard Summit Sporting. The 12-gauge version incorporates Caesar Guerini’s Maxis Bore barrels and Choke System for enhanced performance. This barrel incorporates a .735 bore diameter with a longer choke system calibrated to the larger bore. The 12-gauge stocks have also been reconfigured to offset the slight increase in barrel weight.
The Summit Ascent is everything you want from a modern sporting clays shotgun. The 10mm high; tapered top rib in combination with a Monte Carlo style stock creates a more comfortable upright shooting position and improved target visibility. This makes the Ascent particularly well suited for the sporting clays shooter who pre-mounts their gun before calling for the target. Importantly; the tapered top rib is designed to provide a flat shooting 50/50% point-of-impact; making it ideal for sporting clays. Additionally; the stock incorporates our DTS adjustable comb allowing a wide variety of shooters to dial in their gun fit precisely. The mass in the stock and barrels are engineered so the gun will balance perfectly.
*Measured from the lowest point of the barrel.
**Weights may vary based on wood density.
The Summit Ascent is everything you want from a modern sporting clays shotgun. The 10mm high; tapered top rib in combination with a Monte Carlo style stock creates a more comfortable upright shooting position and improved target visibility. This makes the Ascent particularly well suited for the sporting clays shooter who pre-mounts their gun before calling for the target. Importantly; the tapered top rib is designed to provide a flat shooting 50/50% point-of-impact; making it ideal for sporting clays. Additionally; the stock incorporates our DTS adjustable comb allowing a wide variety of shooters to dial in their gun fit precisely. The mass in the stock and barrels are engineered so the gun will balance perfectly.
Specifications | |||
| Summit Ascent (A2H145) | Summit Limited (A22144L) | Summit Limited (A22344L) | |
| Gauge | 12 | 12 | 20 |
| Barrel length | 30" (76cm) | 30" (76cm) | 30" (76cm) |
| Avg. Weight** | 8lbs. 4oz. | 7lbs. 14oz. | 7lbs 6oz |
| Receiver finish | Satin blued finish with Invisalloy clear protection | Case colored with Invisalloy protective finish | Case colored with Invisalloy protective finish |
| Stock Finish | Hand rubbed oil | Hand rubbed oil | Hand rubbed oil |
| Checkering | 26 lines per inch | 26 lines per inch | 26 lines per inch |
| Recoil Pad | Black rubber | Black rubber | Black rubber |
| Chamber | 2 ¾” | 2 ¾” | 2 ¾” |
| Top Rib | Width 11mm – 8mm Tapered | Width 10mm (.4”) parallel and ventilated | Width 10mm (.4") parallel and ventilated |
| Rib Height* | 10mm Fixed | 6mm | 6mm |
| Center Rib | Ventilated | Ventilated | Ventilated |
| Forcing Cones | 5” DuoCon | 5" DuoCon | 4” DuoCon |
| Avg. Barrel Weight | 30"-1.49kg (3.28lbs.) | 30"-1.49kg (3.28lbs.) | 30”- 1.35kg(2.98lbs.) |
| Avg. Bore | .735; Chrome lined | .735; Chrome lined | .626; Chrome lined |
| Chokes | 6 MAXIS competition chokes | 6 MAXIS competition chokes | 6 Extended Competition Selecta Chokes |
| Sight(s) | White Bradley style front Silver center bead | White Bradley style front Silver center bead | White Bradley style front Silver center bead |
| Fore-end | Rounded | Schnabel | Schnabel |
| Trigger | New DTS trigger system with two trigger pull weight options; take up; over travel and length of pull adjustments. Factory selective release triggers available in single and double release for 12g. | New DTS trigger system with two trigger pull weight options; take up; over travel and length of pull adjustments. Factory selective release triggers available in single and double release for 12g. | New DTS trigger system with two trigger pull weight options; take up; over travel and length of pull adjustments. |
| Safety | Manual (Automatic as an option) | Manual (Automatic as an option) | Manual (Automatic as an option) |
| Accessories | Stock and trigger wrench; choke case; friction choke wrench | Stock and trigger wrench; choke case; friction choke wrench | Stock and trigger wrench; choke case; friction choke wrench |
| Case | Plastic hard case with fit interior and velvet stock sleeve and barrel sleeve | Plastic hard case with fit interior and velvet stock sleeve and barrel sleeve | Plastic hard case with fit interior and velvet stock sleeve and barrel sleeve |
| Overall length of gun w/chokes | 48.25” (30” barrels) | 48.25” (30” barrels) | 48.25" (30" barrels) |
*Measured from the lowest point of the barrel.
**Weights may vary based on wood density.
